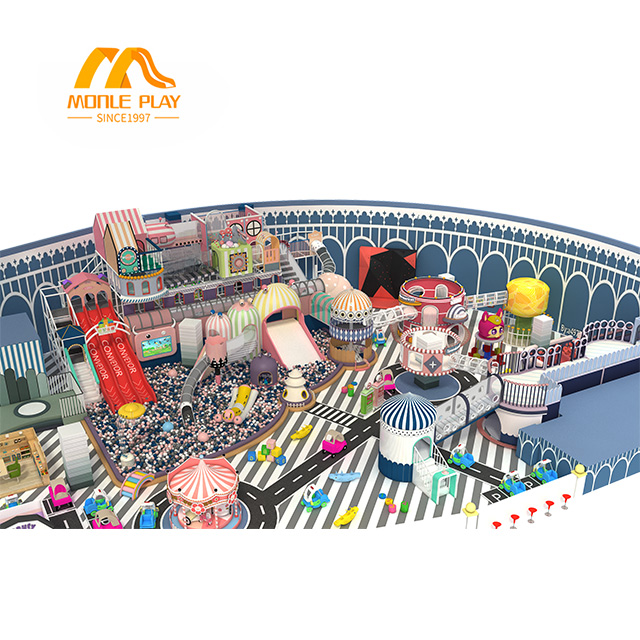

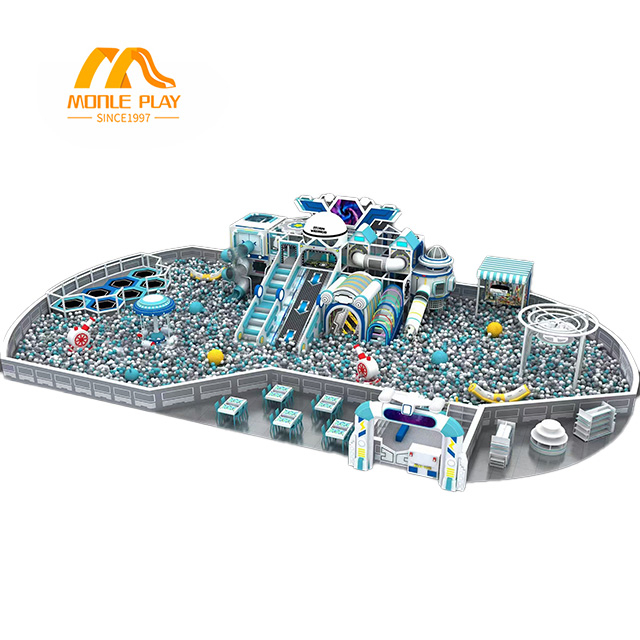

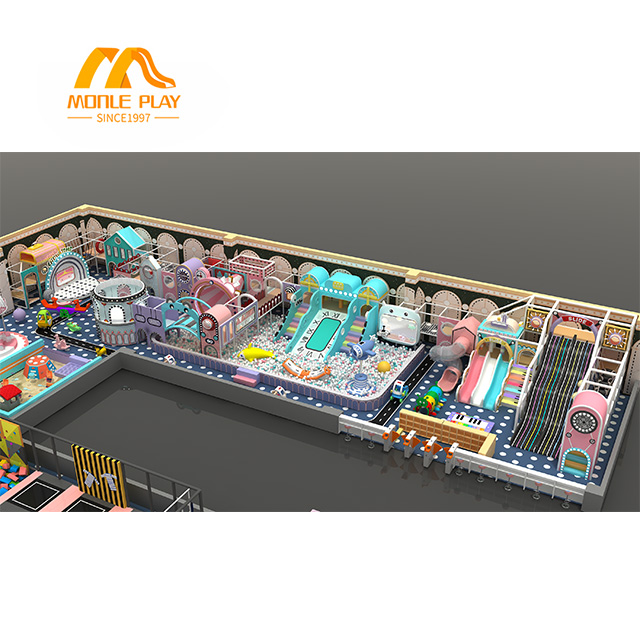

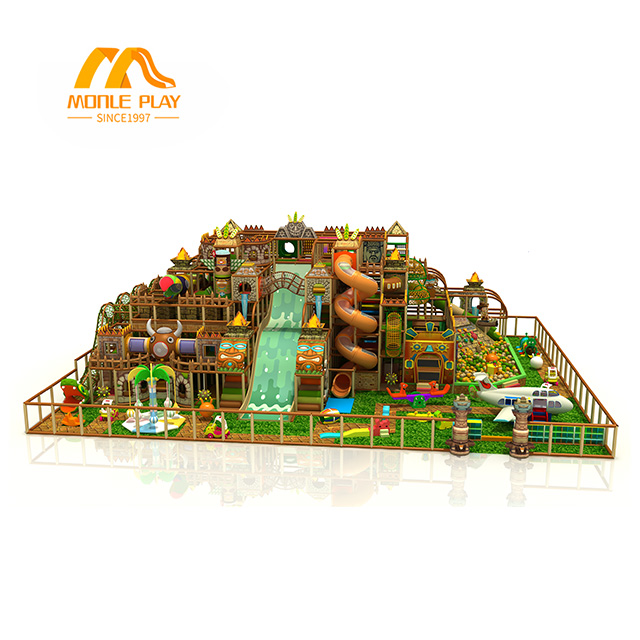

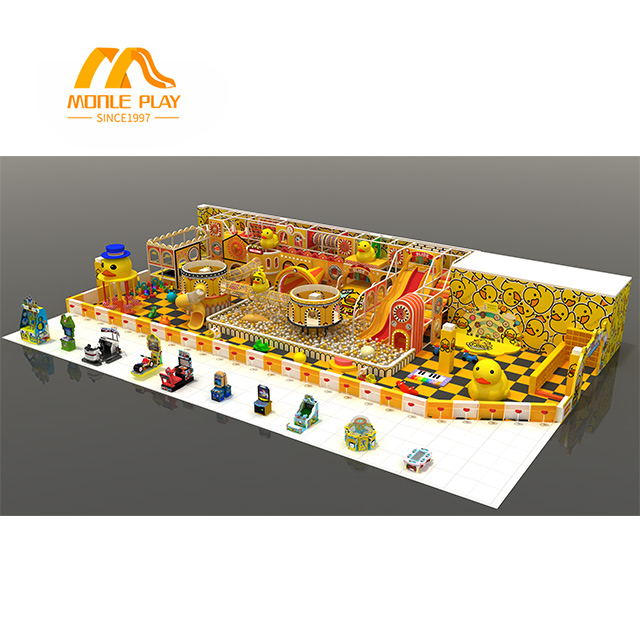

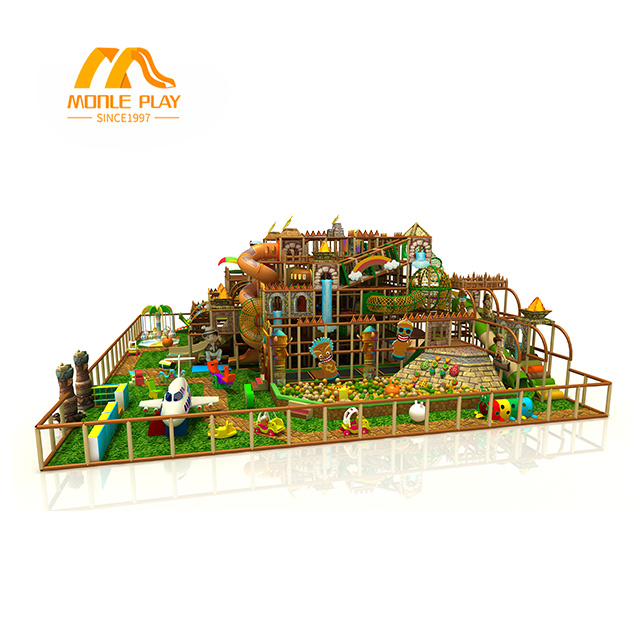

China’s manufacturer of heavy-duty indoor amusement parks, offering EN 71/ASTM-compliant solutions built for 10,000+ daily visitors. Our hot-dip galvanized steel frames and UV100-rated components include spiral slides, rope climbs, and musical panels, suitable for franchise chains, airport lounges, and cruise ships.
Low-maintenance design with self-lubricating bearings, replaceable wear parts, and 15-year rust warranties. Customizable options include ADA ramps, anti-graffiti coatings, and bulk spare parts packages. We provide professional installation, global after-sales service, and factory-direct pricing for high-traffic commercial venues.
Built to withstand 10,000+ daily visitors, this commercial-grade amusement park equipment features hot-dip galvanized steel frames (100μm zinc coating, ISO 12944 C5-M certified) and UV100-rated HDPE components (5mm thickness, impact resistance 25kJ/m²). Key attractions include a 5m spiral slide (35° incline, 60cm width), 3m rope climb net (5mm diameter, 500kg breaking strength), and interactive xylophone panels (tuned to C major scale, 440Hz pitch accuracy).
Steel frames tested to 1,000-hour salt spray (ASTM B117), maintaining structural integrity in 95% humidity environments
Plastic components with anti-graffiti topcoat (2H hardness), removable with standard graffiti remover without surface damage
Powder-coat finish (150μm thickness) resists scratches from metal objects (tested with 3N force Scratch hardness test)
Self-aligning swing bearings eliminate annual lubrication, reducing maintenance costs by $1,200/year for 1,000m² parks
Modular wear parts: Slide hinges (10-minute replacement), grip pads (Velcro-attached), and spring covers (snap-lock design)
Galvanized steel components backed by 15-year rust warranty, with touch-up paint kits matching 20 standard RAL colors
8mm radius rounded steel edges (ISO 12944-5 compliant), verified by 1,000-cycle impact testing without burr formation
Non-slip ladder rungs (coefficient of friction 0.75) exceed EN 1176-1:2020 slip resistance requirements for wet conditions
Fall protection system: Compatible with ASTM F1292-certified surfacing (40mm rubber mulch or 30mm synthetic turf with shock pad)
Franchise playground chains
Airport family lounges (meets FAA fire safety requirements for terminal installations)
Cruise ship indoor play decks (designed for 10° roll/pitch stability, ISO 14624 compliant)
Large-scale mall playgrounds (average foot traffic 50,000+ visitors/month)
Safety Surfacing Solutions:
Rubber Tiles: 40mm thickness, certified to IPEMA for 2.5m fall height, with anti-microbial additive (99.6% bacteria reduction)
Synthetic Turf: Lead-free infill (ASTM F963-17), UV50 protection, and drainage holes (20mm spacing)
Acoustic Package:
Ceiling baffles (120kg/m³ density) reduce noise levels from 95dB to 75dB at 5m distance
Rubber vibration isolators (5mm thickness) for slide supports, minimizing structure-borne noise
Security Enhancements:
Tamper-proof Torx T40 fasteners (6-point star drive) with anti-loosening threadlocker
CCTV mounting brackets (360° adjustable, compatible with Hikvision/Dahua systems)
Q: What is the recommended cleaning protocol for high-traffic areas?
A: Daily: Wipe with mild soap solution. Weekly: Deep clean with pressure washer (max 1,500 PSI, 30cm distance). Monthly: Inspect fastener torque (8-10Nm).
Q: Can the equipment be modified after installation?
A: Yes, modular components allow adding/removing attractions without structural changes—contact our engineering team for retrofitting solutions.
Q: What is the difference between UV100 and standard UV protection?
A: UV100-rated materials retain 90% color and 85% mechanical properties after 1,500 hours of UV exposure, vs. 500 hours for standard UV coatings.
